Vehicle Overview

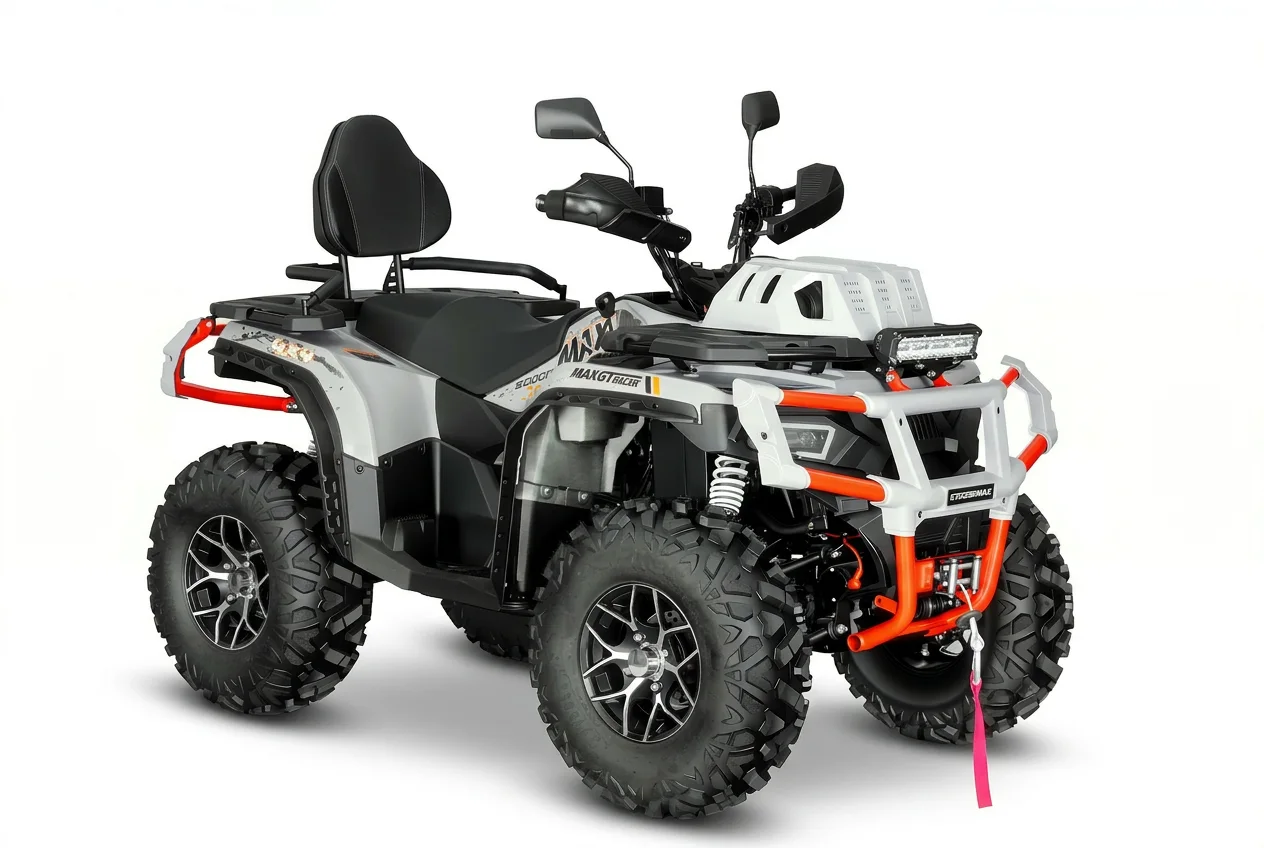

FORGE 500

As the powerhouse of the 2026 Shormar lineup, the FORGE 500 is engineered for heavy-duty ranching and professional forestry. Its high torque and EFI efficiency make it the preferred choice for markets requiring reliable towing and all-day performance in extreme climates. This is the “no-compromise” solution for clients who need a primary workhorse for the toughest terrains.

  • A 471cc water-cooled engine delivering a high-output 33kW.
  • Switchable 4x2/4x4 final drive system for optimized fuel or traction.
  • Exceptional 350mm ground clearance for superior obstacle navigation.
  • Independent double A-arm suspension on both front and rear for ride comfort.
Request a Quote View Specs

Technical Specification

Comprehensive technical details and parameters for the SHORMAR™ FORGE 500.

ENGINE

  • Engine Type 471 ml, 4 stroke, water cooled
  • Max Power 33 kw / 8500 rpm
  • Gear System CVT; H-L-N-R
  • Final Drive Shaft; 4×2 / 4×4 switchable
  • Fuel Delivery Electronic Fuel Injection (EFI)
  • Starting Electric

CHASSIS

  • Front Suspension Double A-arm, Independent
  • Rear Suspension Double A-arm, Independent
  • Front Brake Hydraulic Disc
  • Rear Brake Hydraulic Disc
  • Front Tire & Rim 25×8-12', Aluminum
  • Rear Tire & Rim 25×10-12', Aluminum

DIMENSION

  • L x W x H (Vehicle) 2180×1210×1480 mm
  • Seat Height 1000 mm
  • Wheelbase 1360 mm
  • Ground Clearance 350 mm
  • Fuel Capacity 18 L
  • Max Loading 220 kgs

PACKING INFO

  • L x W x H (Carton) 1990×1185×930 mm
  • N.W. / G.W. 360 / 390 kgs
  • QTY / 20'GP 8 pcs
  • QTY / 40'HQ 20 pcs
  • Packing Type Steel Frame + Carton Box

Recommended Models

Explore other high-performance ATV 4X4 in the SHORMAR™ series.

SHORMAR™ 400cc Pro
Entry Level

SHORMAR™ 400cc Pro

Totally new and versatile 400cc 4x4 ATV built for farms, trails, and daily utility work

View Details
SHORMAR™ 350cc
Entry Level

SHORMAR™ 350cc

Totally new and versatile 350cc 4x4 ATV built for farms, trails, and daily utility work

View Details

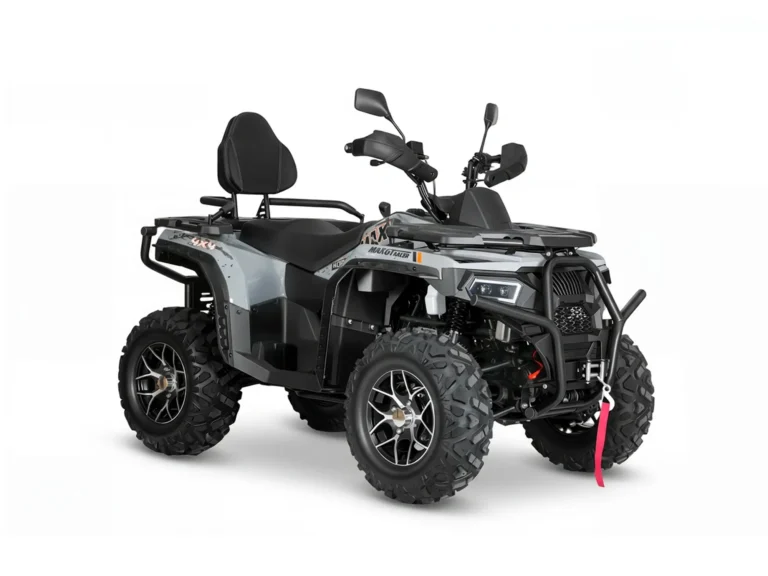

SHORMAR™ 320cc
Entry Level

SHORMAR™ 320cc

Totally new and versatile 320cc 4x4 ATV built for farms, trails, and daily utility work

View Details
SHORMAR™ 320cc
Entry Level

SHORMAR™ 320cc

High-torque 300cc performance with selectable 4WD for confident all-terrain control

View Details
Why Senki Moto

Your Trusted OEM/ODM Partener

Direct from our 16,000m² manufacturing base in Zhejiang, China. We provide comprehensive powersports manufacturing solutions for global brands, wholesalers, and distributors.

  • 10+

    Years Expertise

    Proven track record in ATV and Dirt Bike manufacturing, currently exporting to over 45 countries worldwide.

  • 25,000 Units Capacity

    Large-scale production capability with ISO 9001:2015 certification ensuring consistent quality and timely delivery.

  • Full Customization

    Complete private label services including body design, decal customization, and power system optimization.
