Vehicle Overview

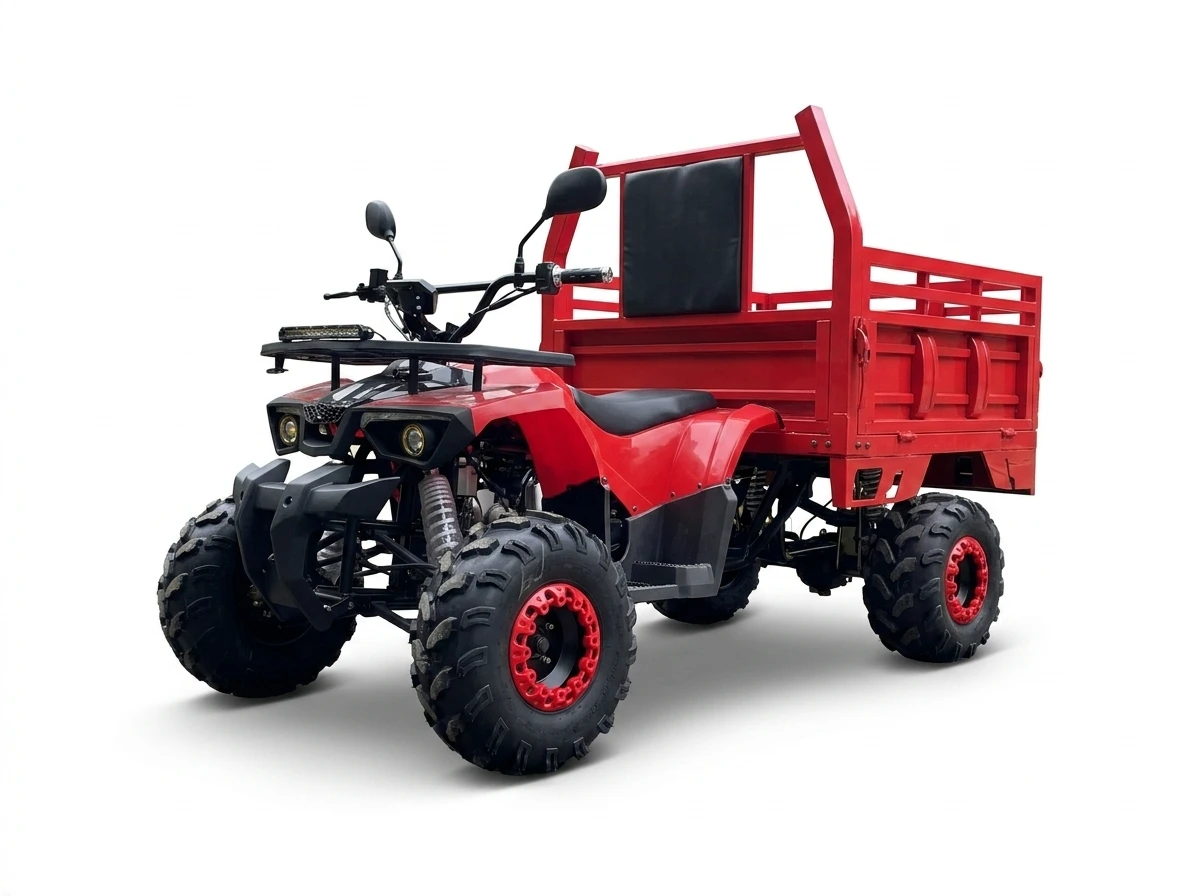

HAMMER 125L

The HAMMER 125L is a compact and agile utility vehicle designed for specialized environments like narrow orchards or smaller farm properties. It provides a significant efficiency boost over manual labor, offering a sturdy 250 kg loading capacity in a maneuverable frame. Ideal for light-to-medium gardening and agricultural duties, it bridges the gap between a standard ATV and a full utility hauler.

  • * Compact Hauling: 1.0 X1.0 X 0.49 m cargo bed for tools and light agricultural products .
  • Loading Capacity: Reliable 250 kg capacity with a high-strength chassis .
  • Engine & Drive: Efficient 125cc air-cooled engine with a shaft-driven $4 \times 2$ system .
  • Ease of Use: Semi-automatic gear system (R-N-1-2-3) for simple operation.
Request a Quote View Specs

Technical Specification

Comprehensive technical details and parameters for the SHORMAR™ HAMMER 125L.

ENGINE

  • Engine Type 125cc, 4 stroke, air cooled
  • Max Power 6.3 kw / 7500 rpm
  • Gear System Semi-automatic; R-N-1-2-3
  • Final Drive Shaft; 4×2
  • Fuel Delivery Carburetor, PZ22
  • Starting Electric

CHASSIS

  • Front Suspension Double A-arm, Independent
  • Rear Suspension Spring Steel
  • Front Brake Hydraulic Disc
  • Rear Brake Drum
  • Front Tire & Rim 19×7-8', Steel
  • Rear Tire & Rim 18×9.5-8', Steel

DIMENSION

  • L x W x H (Vehicle) 2300×1100×1320 mm
  • Seat Height 680 mm
  • Wheelbase 720 mm
  • Ground Clearance 1460 mm
  • Fuel Capacity 2.5 L
  • Max Loading 250 kgs

PACKING INFO

  • L x W x H (Carton) 2200×1050×750 mm
  • N.W. / G.W. 150 / 180 kgs
  • QTY / 20'GP 15 pcs
  • QTY / 40'HQ 36 pcs
  • Packing Type Steel Frame + Carton Box
