Vehicle Overview

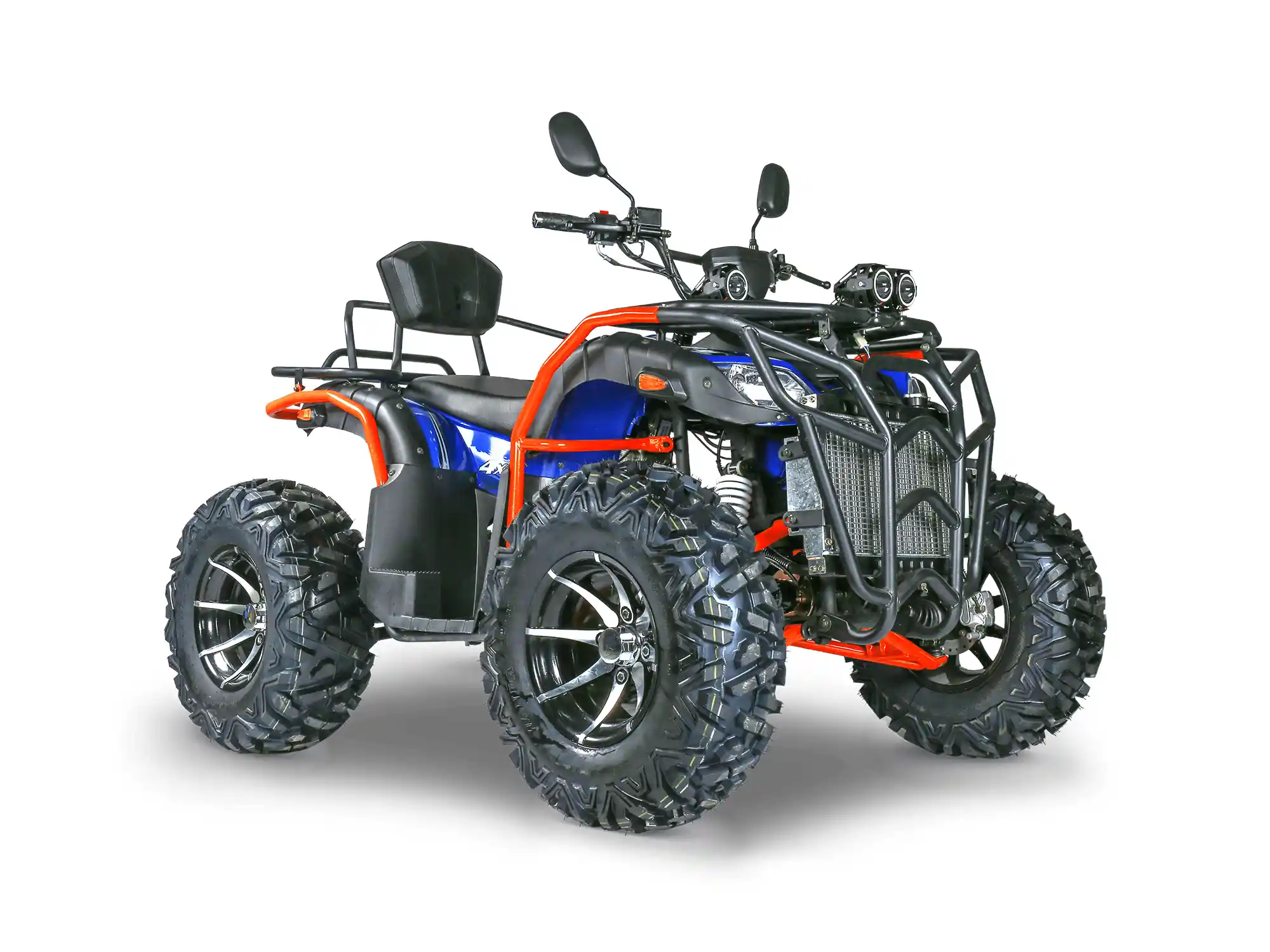

HAMMER 300

The HAMMER series is the definitive “industrial” ATV, built for high-impact environments like livestock farming and construction support. Featuring full-body armor and a manual clutch, it appeals to traditionalists who demand total engine control and maximum vehicle protection. This series is marketed as a durable tool that can survive the bumps and scrapes of daily hard labor.

  • Armored Design: Comes standard with front/rear bumpers and integrated side guards.
  • Manual Control: 5-speed manual clutch (R-N-1-2-3-4-5) for precise torque management.
  • Shaft Drive 4WD: Full-time 4-wheel drive delivered via a heavy-duty shaft system.
  • Compact Utility: Narrow 1150mm width allows access to areas where larger ATVs cannot go.
Request a Quote View Specs

Technical Specification

Comprehensive technical details and parameters for the SHORMAR™ HAMMER 300.

ENGINE

  • Engine Type 275 ml, 4 stroke, water cooled
  • Max Power 12.5 kw / 6500 rpm
  • Gear System Manual Clutch; R-N-1-2-3-4-5
  • Final Drive Shaft; 4×4
  • Fuel Delivery Carburetor, PZ30
  • Starting Electric

CHASSIS

  • Front Suspension Double A-arm, Independent
  • Rear Suspension Double A-arm, Independent
  • Front Brake Hydraulic Disc
  • Rear Brake Hydraulic Disc
  • Front Tire & Rim 23×7-10', Aluminum
  • Rear Tire & Rim 22×10-10', Aluminum

DIMENSION

  • L x W x H (Vehicle) 1700×1150×1120 mm
  • Seat Height 790 mm
  • Wheelbase 1240 mm
  • Ground Clearance 210 mm
  • Fuel Capacity 5 L
  • Max Loading 150 kgs

PACKING INFO

  • L x W x H (Carton) 1760×1050×860 mm
  • N.W. / G.W. 240 / 260 kgs
  • QTY / 20'GP 12 pcs
  • QTY / 40'HQ 39 pcs
  • Packing Type Steel Frame + Carton Box
